TB6612FNG Dual DC Stepper Motor Driver Module 1.2A Peak 3.2A in Pakistan

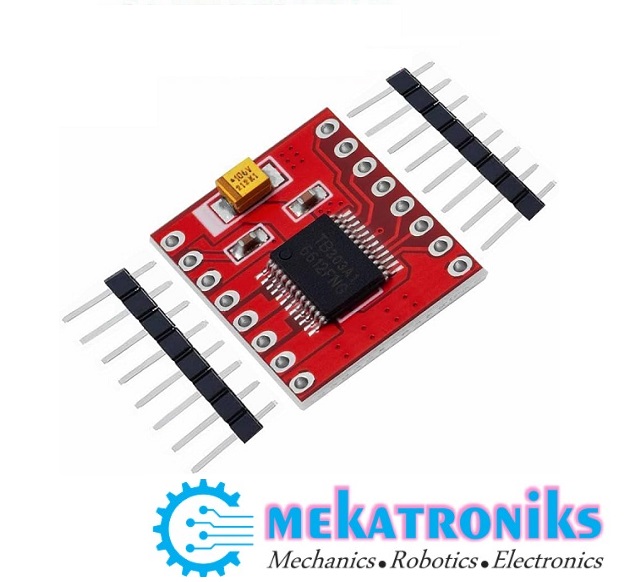

TB6612FNG Dual DC Stepper Motor DriverTB6612FNG Dual DC Stepper Motor Driver TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak).Two input signals (IN1 and IN2) can be use to control the motor in one of four function modes – CW, CCW, short-brake, and stop.The two motor outputs (A and B) can be separately control, the speed of each motor is controlvia a PWM input signal with a frequency up to 100kHz.The STBY pin should be pull high to take the motor out of standby mode.Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limit to a maximum voltage of 15VDC.Board comes with all components install as shown.TB6612FNG Dual Motor DriverDecoupling capacitors are included on both supply lines.All pins of the TB6612FNG are broken out to two 0.1″ pitch headers; the pins are arrange such that input pins are on one side and output pins are on the other.Power supply voltage: VM=15V max, VCC=2.7-5.5V · Output current: Iout=1.2A(average) / 3.2A (peak) Application: it can drive DC motor under 1.5A and 4-wire stepping motor.Pin description: Ani1: logic input control port of AO1, level 0-5V. Ain2: logic input control port of AO2, level 0-5V. Bni1: logic input control port of Bo1, level 0-5V. BIN2: logic input control port of Bo2, level 0-5V.AO1 and AO2 are one H-bridge output ports, which are connect to two pins of a DC motor. Bo1 and Bo2 are two H-bridge output ports, which are connect to two feet of another external direct motor.GND: ground. VM: chip and motor power supply pin, voltage range 2.7 V – 10.8 v. STBY: ground or suspend chip does not work, no output, connected to 5V; level 0-5V.en.wikipedia.org Categories: Instruments & Tools, Motor Drivers, Stepper Motors Tags: H Bridge, Stepper Driver, Stepper Motor Drive, TB6612
