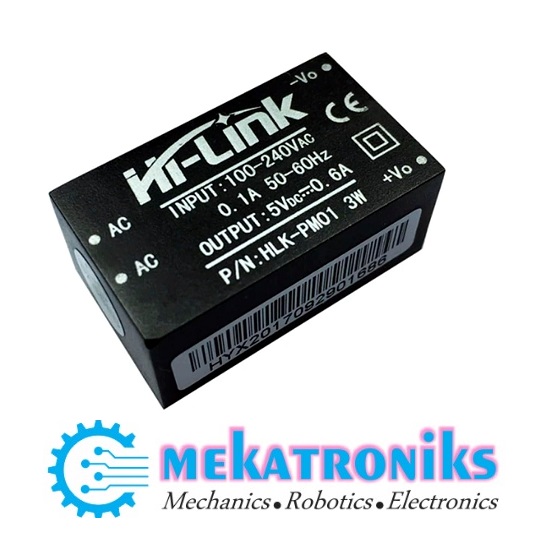

HLK-PM01 AC-DC 220V to 5V Step-Down Power Supply Module

Power Supply HLK-PM01 220V to 5VHi-Link Latest Power Supply Module, Suitable For Smart Home Switch Control Device, Small Volume, Low Current, Input Voltage Range, Is The Best Choice Of Smart HomeHLK-PM01 5V/3W Switch Power Supply Module is a plastic enclosed PCB mounted isolated switching step-down power supply module. It can supply 5V DC from  120V AC – to 230V AC and has a power rating of 3 Watt. This makes it perfect for small projects that need a 5-volt supply from mains. There are many advantages of these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.Power Supply HLK-PM01 220V to 5VHLK-PM01 AC DC 220 V to 5 V step down power supply module, isolated power supply module . HLK-PM01 Mini size: 3.4 x 2 x 1.5 cm (Length*Width*Height). Weight: 21g Rated input voltage: 100-240 V AC Input voltage range: 90~264 V AC Maximum input current: ≤ 0.2 A Input inrush current: ≤ 10 A Maximum input voltage: ≤ 270 V AC Input slow start: ≤ 50 mS Input low voltage efficiency: Vin = 110V AC, the output full load ≥ 69 % Input high voltage efficiency: Vin = 220VAc, the output full load ≥ 70 % Long term reliability: MTBF ≥ 100,000 H No-load rated output voltage: 5 ± 0.1 V DC Full load rated output voltage: 5 ± 0.2 V DC Short time maximum output current: ≥ 1000 MA Long time maximum output current: ≥ 600 MA Voltage regulation: ± 0.2% Load Regulation: ± 0.5% Output ripple and noise: (MVp-p) ≤ 50 MV. — Rated input voltage, output full load. With 20MHz bandwidth oscilloscope, the load side is tested with 10uF and 0.1uF capacitors. Switch machine overshoot: (Rated input voltage, output plus 10% load) ≤ 5% VO Output over-current protection — Output the maximum load of 150-200% A Output short circuit protection. Categories: Accessories, Converters, Power Modules, Power Supplies Tags: 220V to 5V, 5v, HLK PM01, Power Supply
