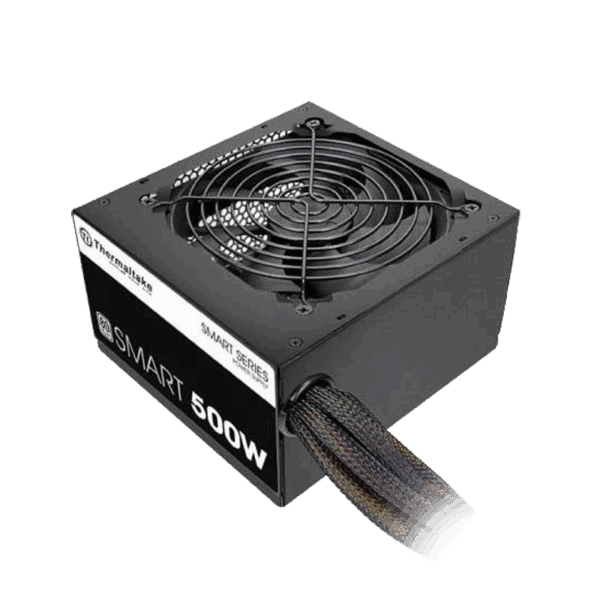

POWER SUPPLY – THERMALTAKE 500W

Model Brand Thermaltake Model PS-SPD-0500NPCWUS-W Series Smart 500W Details Type Intel ATX 12V 2.3 Maximum Power 500W Fans 1 x 120mm Intelligent Cooling Fan PFC Active Main Connector 20 4Pin 12V Rails Single PCI-Express Connector 2 x 6 2-Pin SATA Power Connector 6 SLI SLI Ready Haswell Support Yes CrossFire CrossFire Ready Modular Hardlined Power Good Signal 100-500ms Hold-up Time 16.6ms min. Efficiency 80% Efficiency Energy-Efficient 80 PLUS Certified Over Voltage Protection Yes Input Voltage 100 – 240 V Input Frequency Range 50/60 Hz Input Current 8A Output 3.3V@20A, 5V@15A, 12V@35A, [email protected] , [email protected] MTBF >100,000 Hours Approvals CE, CB, TUV, UL, FCC Dimensions 3.40″ x 5.90″ x 5.50″ Max PSU Length 140 mm Weight 4.25 lbs. Features Connectors 1 x 20 4-pin ATX 1 x 4 4-pin EPS 2 x 6 2-pin PCI-E 6 x SATA 3 x Peripheral 1 x Floppy Features Compliance with Intel ATX 12V 2.31 & EPS 12V 2.92 standards 80 PLUS Certified – 80% efficiency under typical load Single 12V rail Design Supports Intel C6 Status for improved efficiency Ultra-quiet 120mm fan with intelligent temperature control Hardlined cables for straight forward installation
