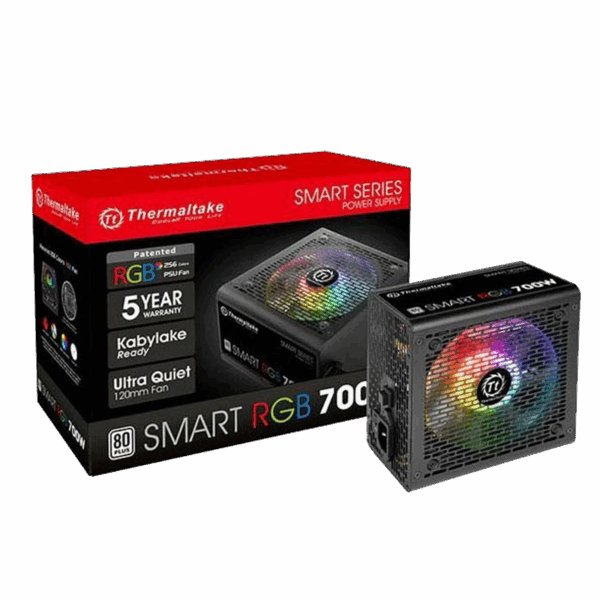

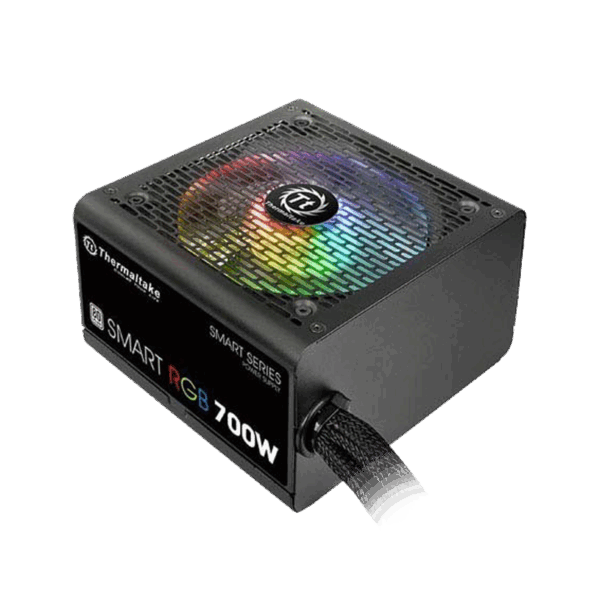

POWER SUPPLY – THERMALTAKE SMART RGB 700W (SPR-0700NHSAW)

Type Intel ATX 12V 2.3 Maximum Power 500W Fans 1 x 120mm RGB LED Intelligent Cooling Fan Fan LED RGB PFC Active Main Connector 20 4Pin 12V Rails Single PCI-Express Connector 2 x 6 2-Pin SATA Power Connector 6 Haswell Support Yes Efficiency 80% under typical load Energy-Efficient 80 PLUS Certified Over Voltage Protection Yes Input Voltage 100 – 240 V Input Frequency Range 50/60 Hz Input Current 9A max Output 3.3V@20A, 5V@15A, 12V@35A, [email protected] , [email protected] MTBF 100,000 Hours Approvals CE / CB / TUV / UL / FCC / EAC Dimensions 5.50″ x 5.90″ x 3.40″ Max PSU Length 140 mm Weight 2.30 lbs. Features Connectors 1 x 20 4pin ATX 1 x 4 4pin EPS 2 x 6 2 PCI-E 6 x SATA 3 x Peripheral 1 x Floppy Features Compliance with Intel ATX 12V 2.3 standards 80 PLUS Certified – 80% efficiency under typical load Single 12V rail Design Supports Intel C6 Status for improved efficiency Ultra-quiet 120mm RGB LED fan with intelligent temperature control Hardlined cables for straight forward installation
