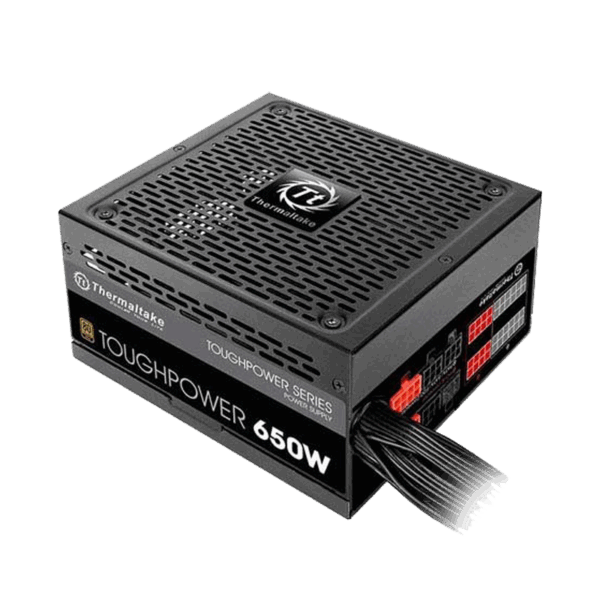

POWER SUPPLY – THERMALTAKE TOUGHPOWER – GOLD 650W

Type Intel ATX 12V 2.4 & SSI EPS 12V 2.92 Maximum Power 650W Fans 1 x 140mm Riing RGB fan Fan LED RGB PFC Active Main Connector 24Pin 12V Rails Single PCI-Express Connector 4 x 6 2-Pin SATA Power Connector 9 SLI SLI Ready CrossFire CrossFire Ready Modular Full Modular Efficiency 90% Energy-Efficient 80 PLUS GOLD Certified Over Voltage Protection Yes Input Voltage 100 – 240 V Input Frequency Range 50/60 Hz Input Current 10 A Output 3.3V@22A, 5V@22A, [email protected] , [email protected] , 5VSB@3A MTBF 120,000 Hours Approvals CE, cTUVus, TUV, SUD, FCC, CCC, BSMI, EAC Dimensions 3.39″ x 5.91″ x 6.29″ Max PSU Length 160 mm Weight 7.2 Features Connectors 1 x 24-pin ATX 1 x 4 4pin EPS 4 x 6 2 PCI-E 9 x SATA 4 x Peripheral 1 x Floppy Features Compliance with Intel ATX 12V 2.4 & SSI EPS 12V 2.92 standards 80 PLUS GOLD certified – 90% efficiency under typical load Single 12V rail Design offers 62.5A of power and includes (4x) PCI-E 6 2 power connectors Patented 256 color Riing 14 (140mm) RGB fan with multiple lighting modes and built-in memory Smart Zero Fan: Minimizes undesired noise with 0dB options available Full modular design with low profile black flat cables 100% 105 degree C / 221 degree F High quality Japanese capacitors. Intel Skylake’s C6/C7 states & ErP ready Improvements in Ripple Noise and Extremely Strict Voltage Regulation provides exceptional steady clean power. Over Current, Over Power, Over Voltage, Under Voltage, Over Temperature and Short-Circuit protection
