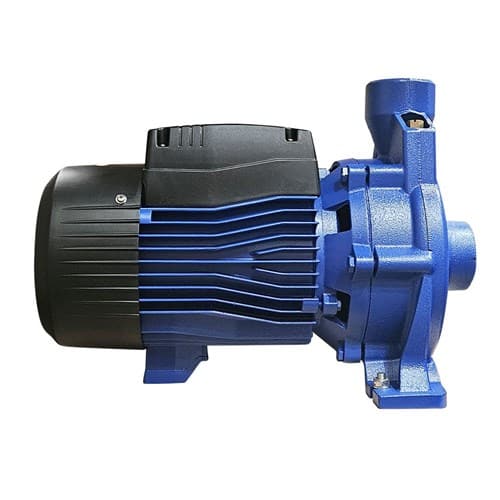

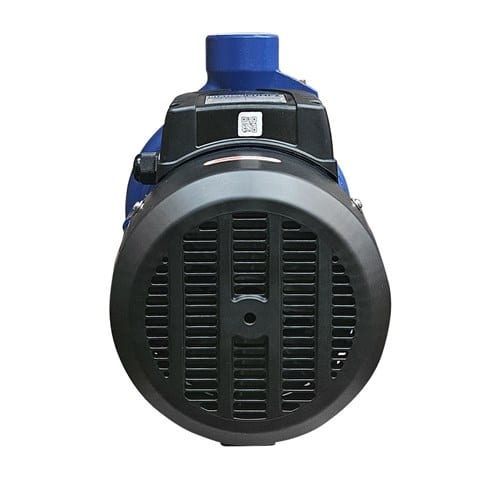

Bianco BIA-FC550T Cast Iron Centrifugal Pump 415V

Bianco BIA-FC550T Cast Iron Centrifugal Pump 415V (802809) The pumps are horizontal single stage* cast iron centrifugal pumps supplied ready to install. Used especially for water transfer. (*FCT is twin stage). Technical Specifications Brand Bianco Pumpz Product Type Single Stage Cast Iron Centrifugal Pump Suitable For Clean Water Bar 5.4 Bar Amps 13 Amps Flow Range Category f. 500 – 999 L/min Flow Rate (L/min) 500 L/min Hp 7.5 Hp Kilo Watts 5.5 kW Head Range Category b. 40 – 59 m Max Head (m) 54 m Port Size Inlet 2″ Inlet Port Size Outlet 2″ Outlet Powered Electric Volts 415 V Warranty (months) 24 Months Pack Weight (KG): 62 Dimensions (mm) : 545L x 335W x 465H The pumps are characterised by: Corrosion resistant cast iron pump body and bracket cover with cataphoresis1 treatment, and 304 stainless steel impeller and shaft. Mechanical shaft seal. 400V three phase TEFC motor with in-built auto reset thermal overload to prevent pump from damage. Motor support foot Applications: Suitable for industrial wash down, water transfer and tank filling. Suitable for fire fighting, HVAC, circulation and pressure boosting. Note; To protect the pump from excessive cycling and to isolate from the effects of water hammer, adding a pressure tank to the system is highly recommended
